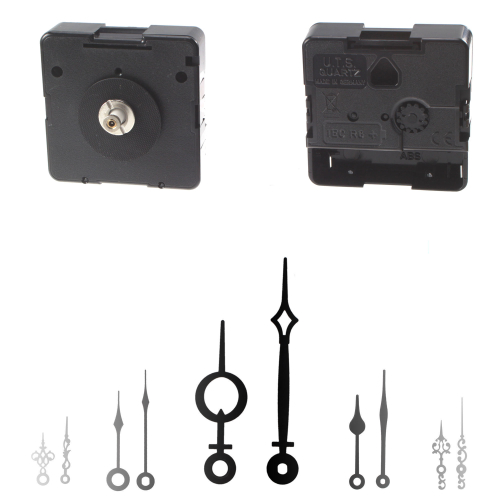

Very durable and particularly quiet movement from the renowned German manufacturer, available in five different movement lengths.
scope of supply
Including standard accessories (central nut, rubber washer and open pointer nut), selected pointer play.
clockwork
All pointer sets with so-called "Euro holes" can be used, the maximum pointer length is approx. 140 mm.
- Movement length 11 mm for dial thicknesses of approx. 1 - 3 mm
- Movement length 14 mm for dial thicknesses of approx. 2 - 4 mm
- Movement length 16 mm for dial thicknesses of approx. 3 - 6 mm
- Movement length 21 mm for dial thicknesses of approx. 5 - 9 mm
- Movement length 26 mm for dial thicknesses of approx. 8 - 15 mm
Pointer play
- filigree made of high-quality aluminium
- with protective foil (please remove before installation) to protect the high-quality surface
- Depending on the version, flat or with elegant embossing
- many great and extraordinary designs
- in different lengths, therefore suitable for almost all dial diameters
From 140 mm minute hand length a movement with increased torque must be used. Normal quartz movements only support hands up to max. 140 mm minute hand length.
UTS radio controlled movements support hand lengths up to max. 120 mm, in the reinforced version up to max. 160 mm.
| Item information |
Value |
| Movement type: |
Quartz movement |
| Hole Euro shaft: |
Minute: 2.8 x 3.5 mm - Hour: 5 mm |
| Torque: |
Standard |
| Type: |
Quartz clock movement |
| Fastening: |
Central screw D = 10 mm |
| Compatible Model: |
Junghans |
| Max. hand length: |
140 mm |
| Dimensions: |
56x56x18mm |
| Required battery (not included): |
1x LR6/AA/Mignon |
| Brand: |
UTS |
| Trademark "Junghans": |
Change of the brand of JUNGHANS quartz movements:
Due to the expiry of the licence agreement on 31.12.2020 between UTS, the long-standing German manufacturer of Junghans quartz movements, and JUNGHANS, these quartz movements will in future be marketed under the UTS brand. The manufacturer, construction, quality or functionality of these movements will remain the same, only the brand will change. Depending on availability, we will still supply quartz movements with the JUNGHANS designation, otherwise we will supply these movements with the UTS designation in the future.
|
